How can I access a display setting page?

How can I access a display setting page?

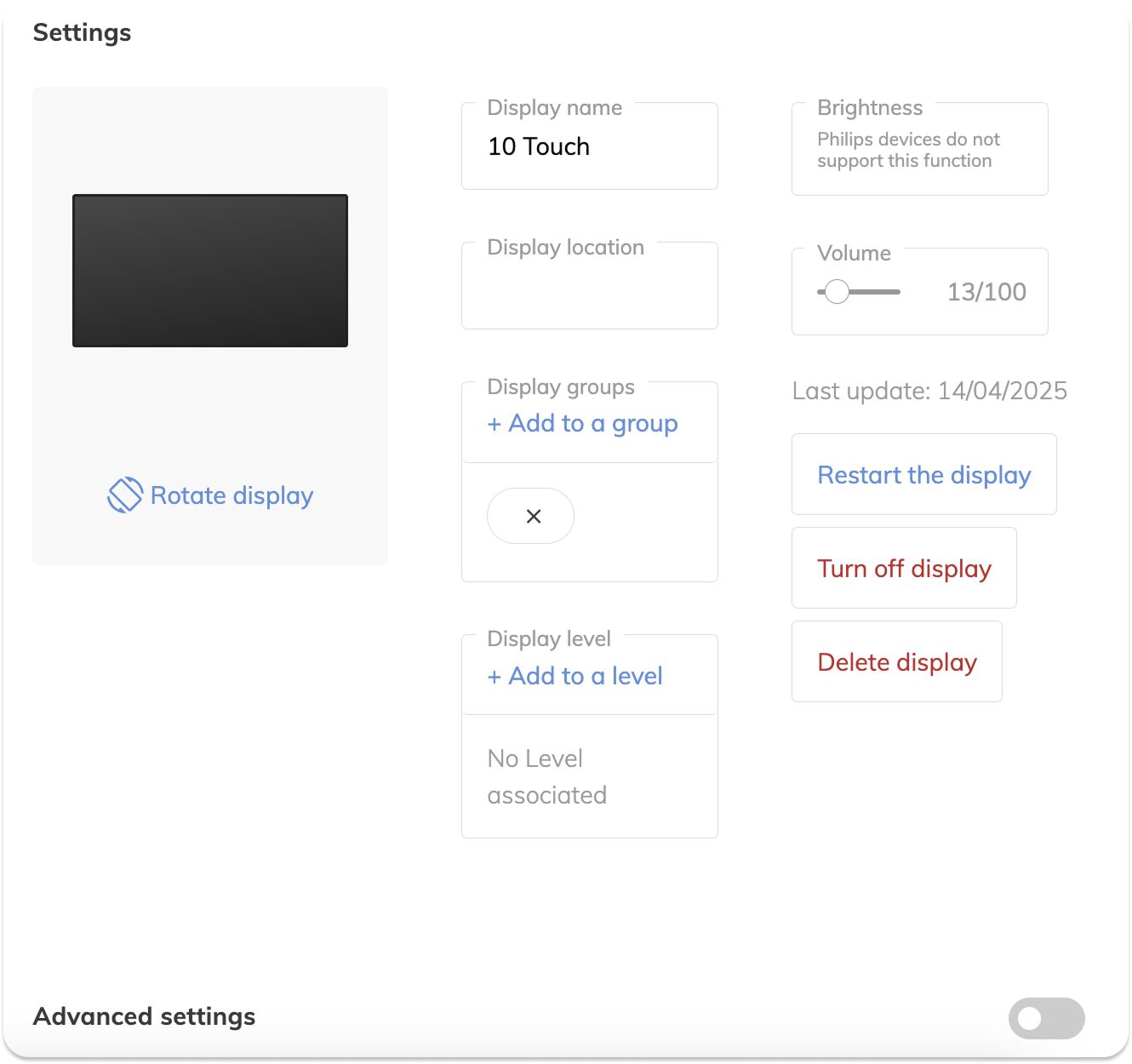

Within each display's detail page, the Settings tab lets you quickly manage essential display parameters.


Here's what you can manage:

Screen Rotation

  1. Use the "Rotate screen" button to switch between horizontal and vertical orientation
  2. Adjust the device’s brightness in real time. Brightness control is only available on certain models

Volume and Brightness

Adjust the device’s audio volume in real time using a slider

Adjust the device’s brightness in real time. Brightness control is only available on certain models. Click here to view the updated document, which contains the complete list of supported models categorized by brand.

Name & Location

You can rename the display to recognize it more easily and may also add a physical location label (e.g., “Meeting Room 1”, “Downtown Window”). This is only visible to you.

Groups & Levels

You can assign the display to one or more groups or a single level to streamline content distribution and remote actions
→ See section below for more details 👇

Quick Actions

  1. Restart display: The display will turn off and back on again.
  2. Turn off display: The display is turned off.
  3. Delete display: Removes the screen from your Livesignage network (⚠️ This action is irreversible)
Once turned off, the display cannot be powered back on remotely.

Creating Display Groups and Levels

Livesignage allows you to organize your screens into groups and levels for easier centralized management.

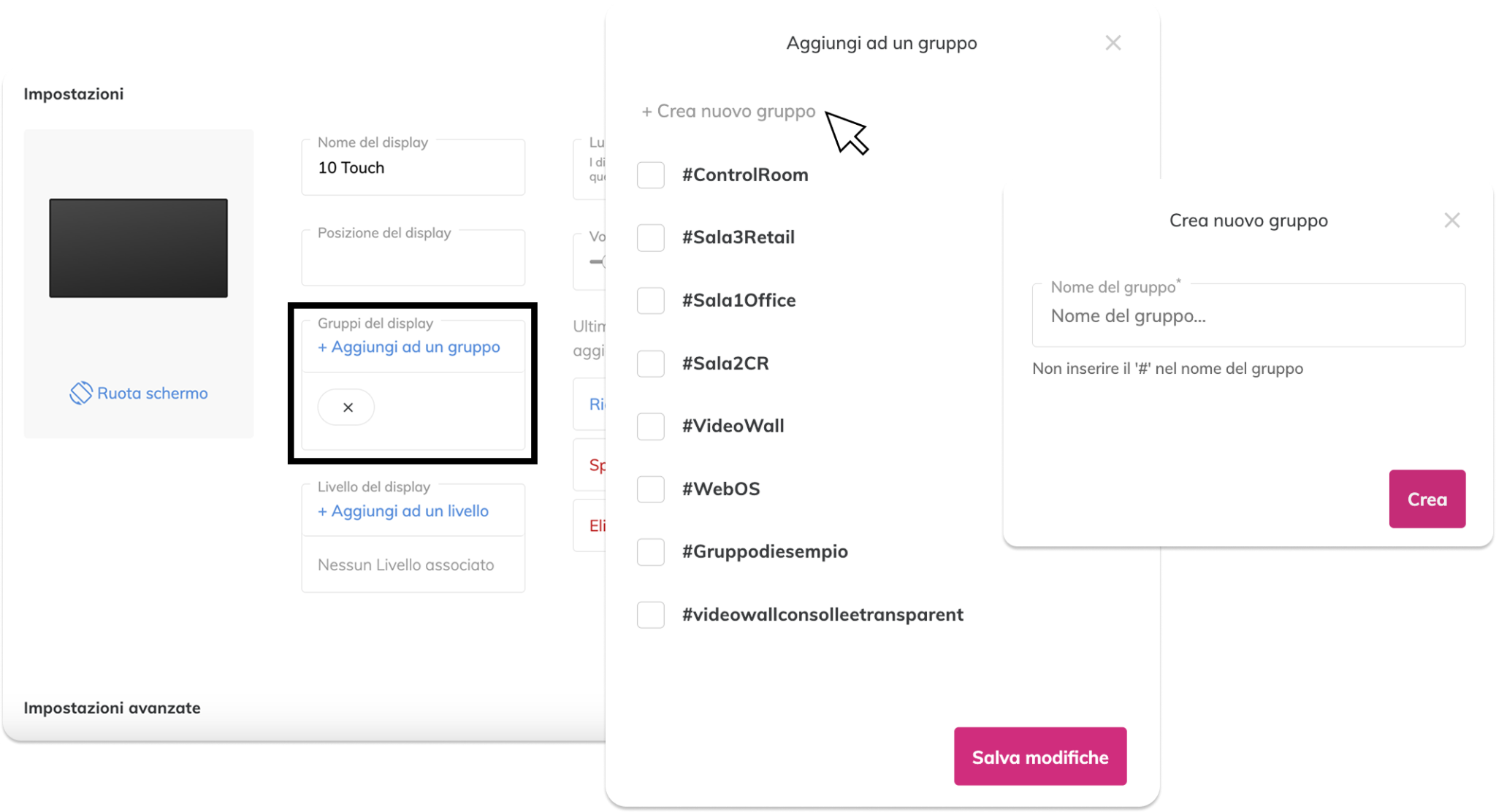

Add a Display to a Group

Aggiunta a gruppo

Groups are useful when you want to manage multiple displays at the same time (e.g., same playlist, same power-off schedule, same remote action).

To assign a display to a group:

  1. Go to the Display Settings
  2. Under “Display Groups,” click + Add to a Group
  3. A selection window will appear
  4. Check one or more existing groups or click + Create New Group
  5. Click Save Changes when done
A display can belong to multiple groups at the same time.

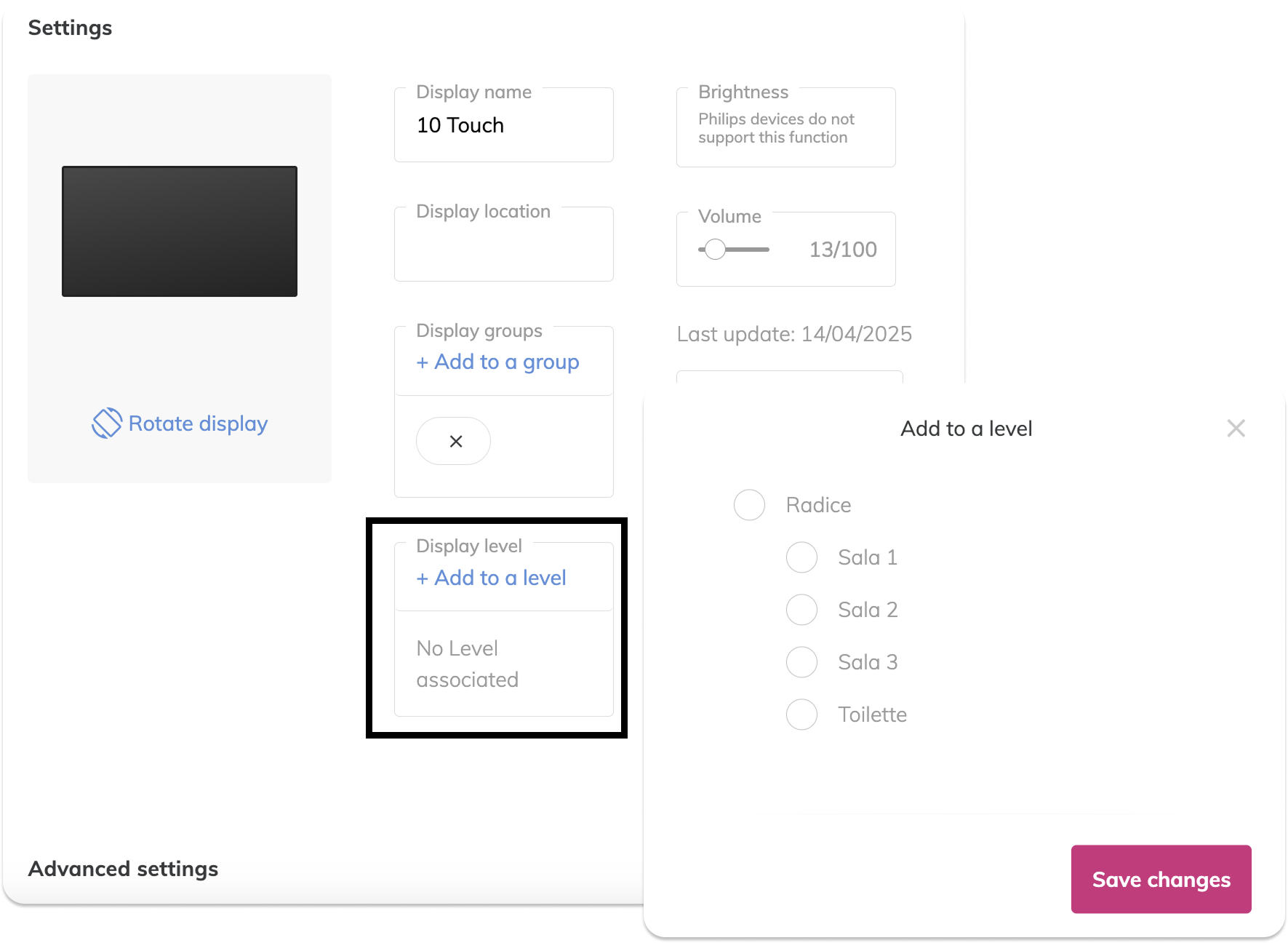

Assign a Display Level

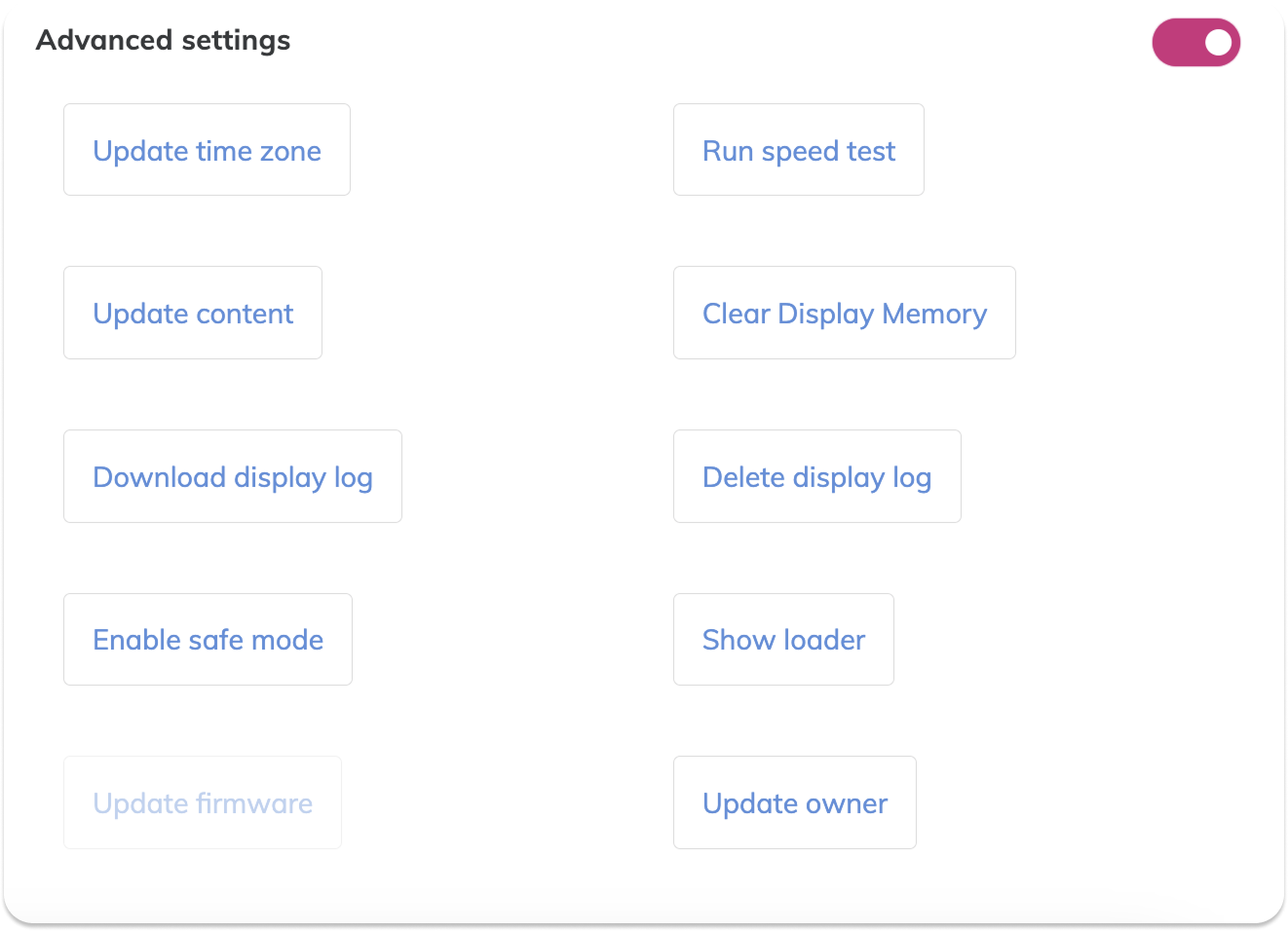

Advanced Display Settings

Advanced settings allow you to perform technical actions useful for control, reset, and remote maintenance of devices.
To access them, enable the switch at the bottom of the Display Settings screen.
Once activated, you will have access to the following functions:


Command

Description

Update time zone

Aligns the display’s time zone with its physical location

Refresh content

Forces the player to update the assigned content

Run speed test

Measures the network connection speed of the display

Clear display memory

Deletes all locally stored content

Download display logs

Exports a log file with system activity and diagnostics

Clear display logs

Deletes current log files from the device

Enable safe mode

Activates a simplified troubleshooting mode

Show loader

Displays a loading indicator when content starts

Update owner

Assigns a new user as the display’s administrator

Update firmware

Installs the latest firmware (available on supported models)
