Samsung Kiosk Tizen 4.0

Before installing Livesignage, make sure that the network you are using meets the requirements for the platform to function correctly.

See the article: What are the network requirements to install Livesignage?

Checking the network requirements in advance helps prevent connection issues, content download failures, and communication problems with Livesignage cloud services.

Language

Choose your language and press Next > on your remote control.

Settings

Auto Power Off

Select “Off” and press Next >.

Network Connection

Connect the display to your network.
If you are using Wi-Fi, select a network from the list.
Otherwise, connect the display using an Ethernet cable.

Install Kiosk

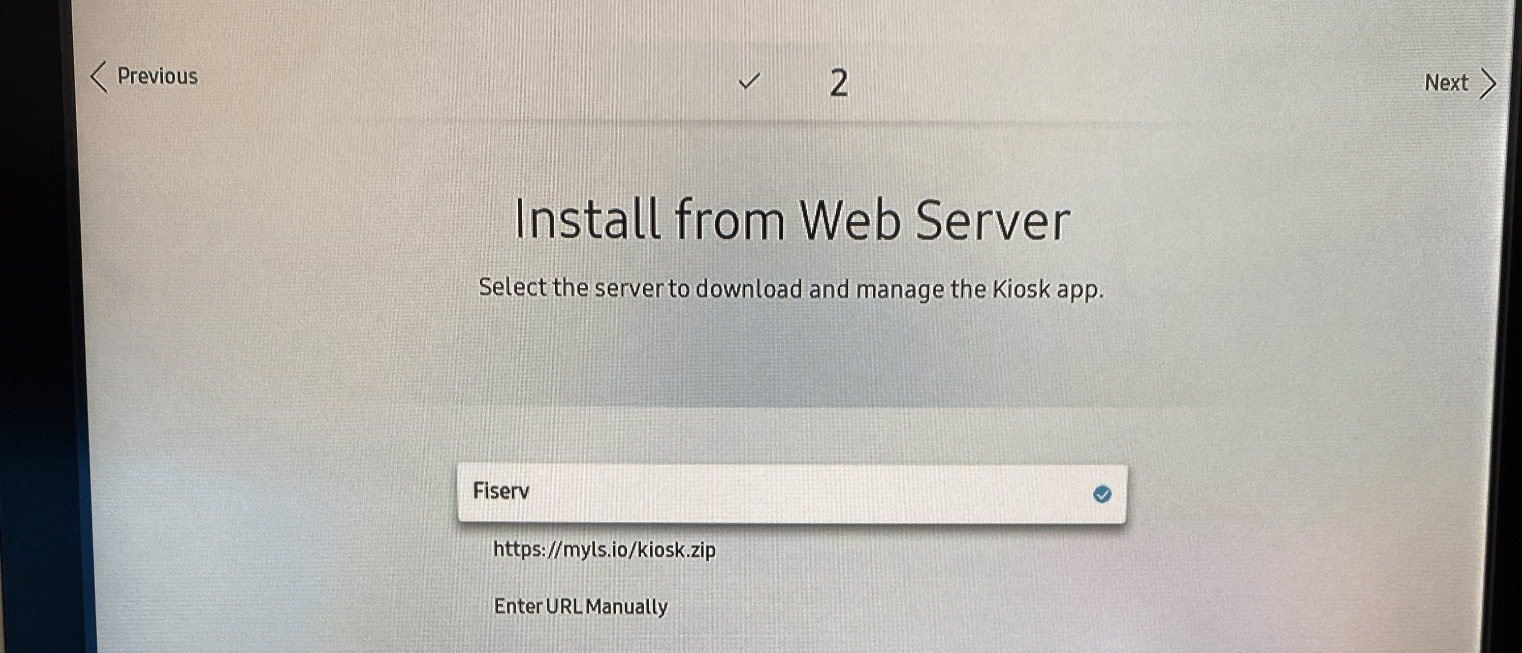

Select “Install from Web Server”.

Install from Web Server option on Samsung Kiosk

Select “Enter URL Manually”.

Enter URL Manually option on Samsung Kiosk

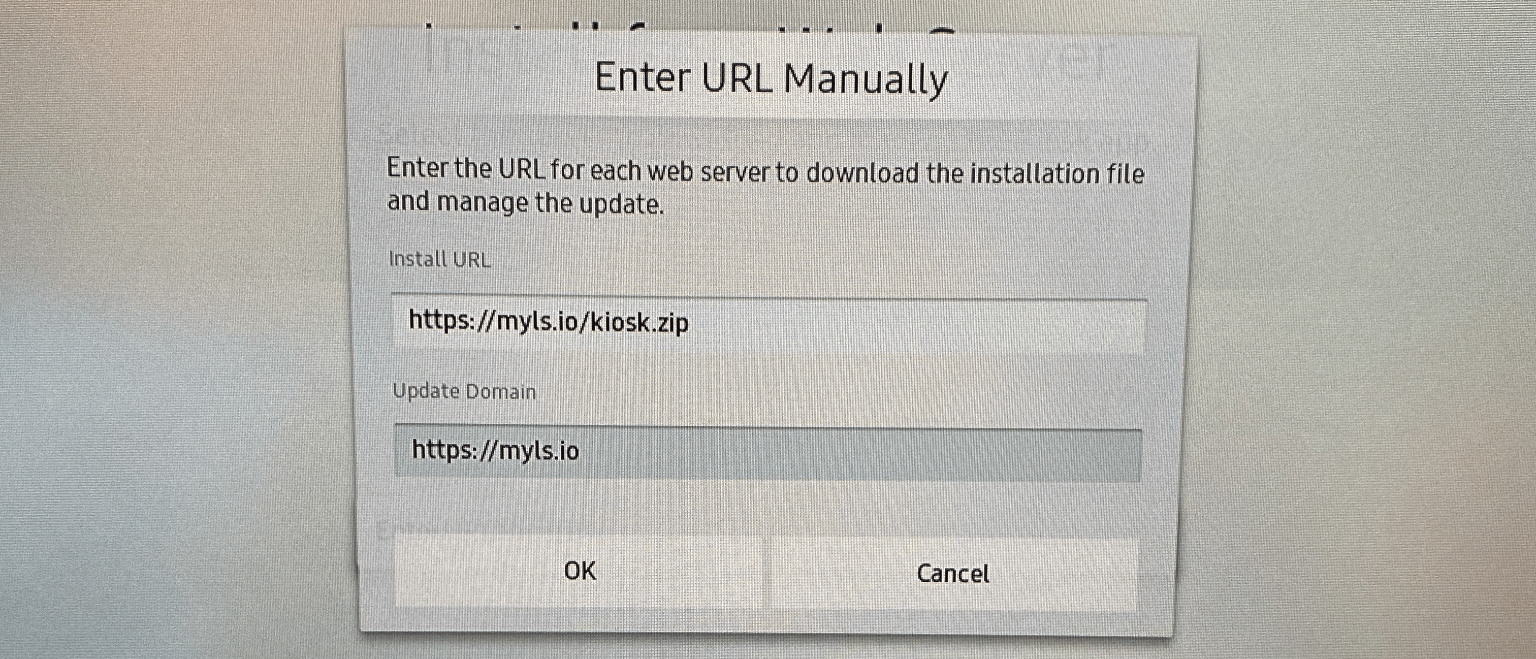

Enter https://myls.io/kiosk.zip in the "Install URL" field and https://myls.io in the "Update Domain" field.

Install URL and Update Domain fields on Samsung Kiosk

Connection to RM Server

Select “Skip”.

Skip option for the RM Server connection

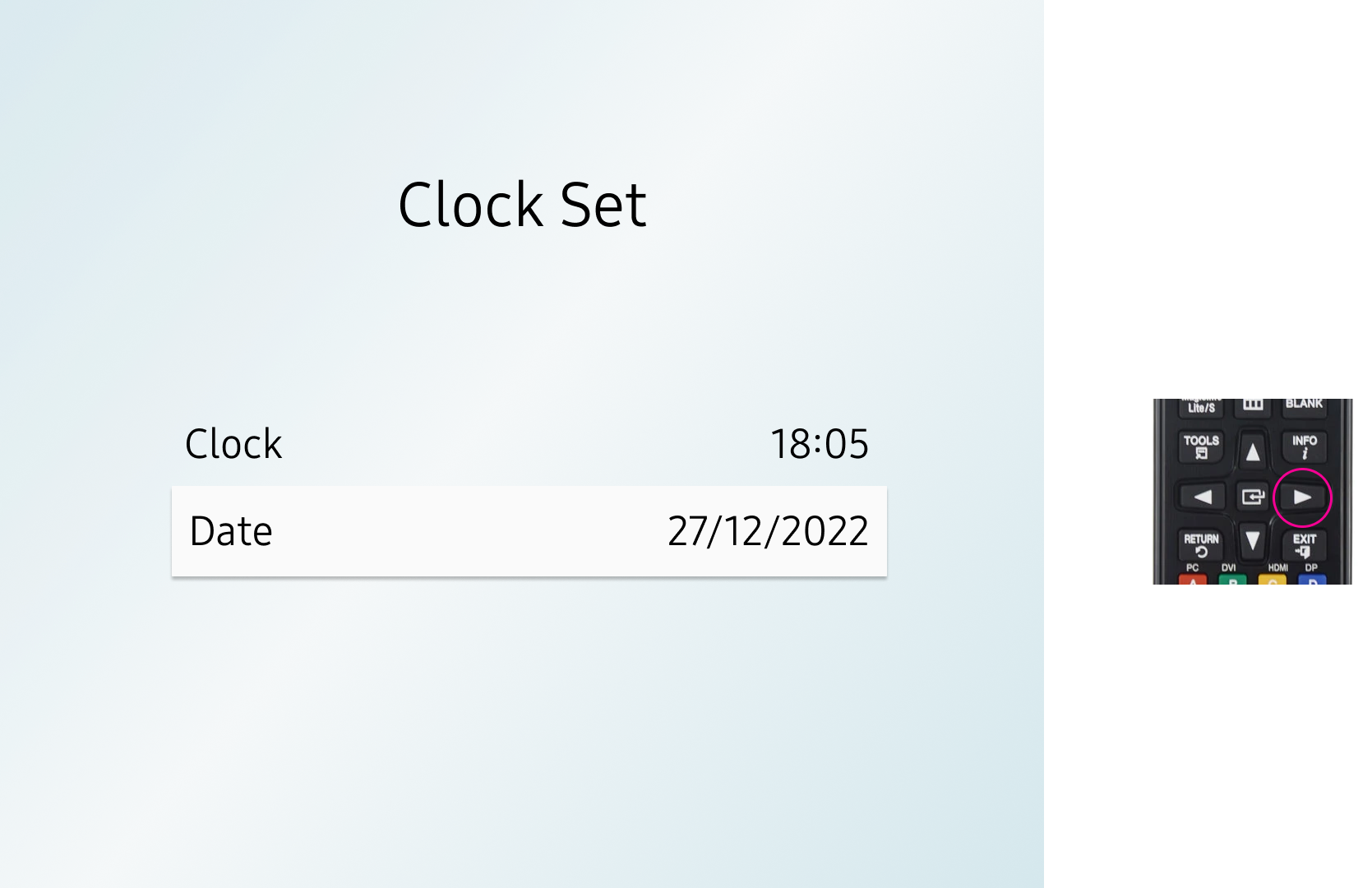

Clock Set

Enter the current date and time, then press Next >.

Complete

Press Enter to continue with the Livesignage setup.

Install Livesignage

Installation

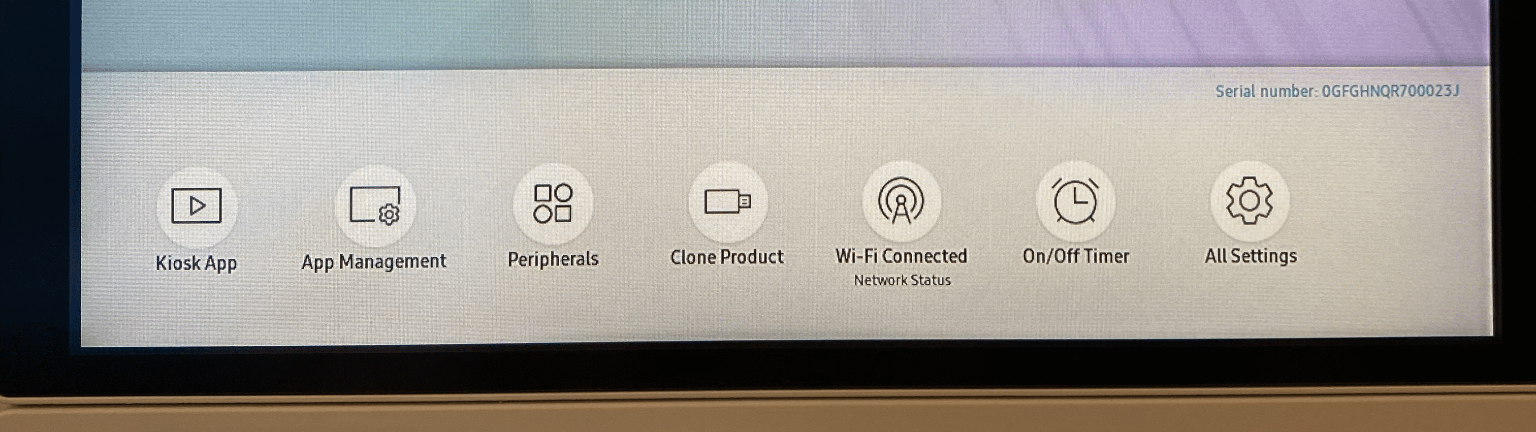

To start the installation, select “Kiosk App”.

Once the installation is complete, the Livesignage logo will appear on the display.

Livesignage installation completed on Samsung Kiosk

Pairing the Display with the Web App

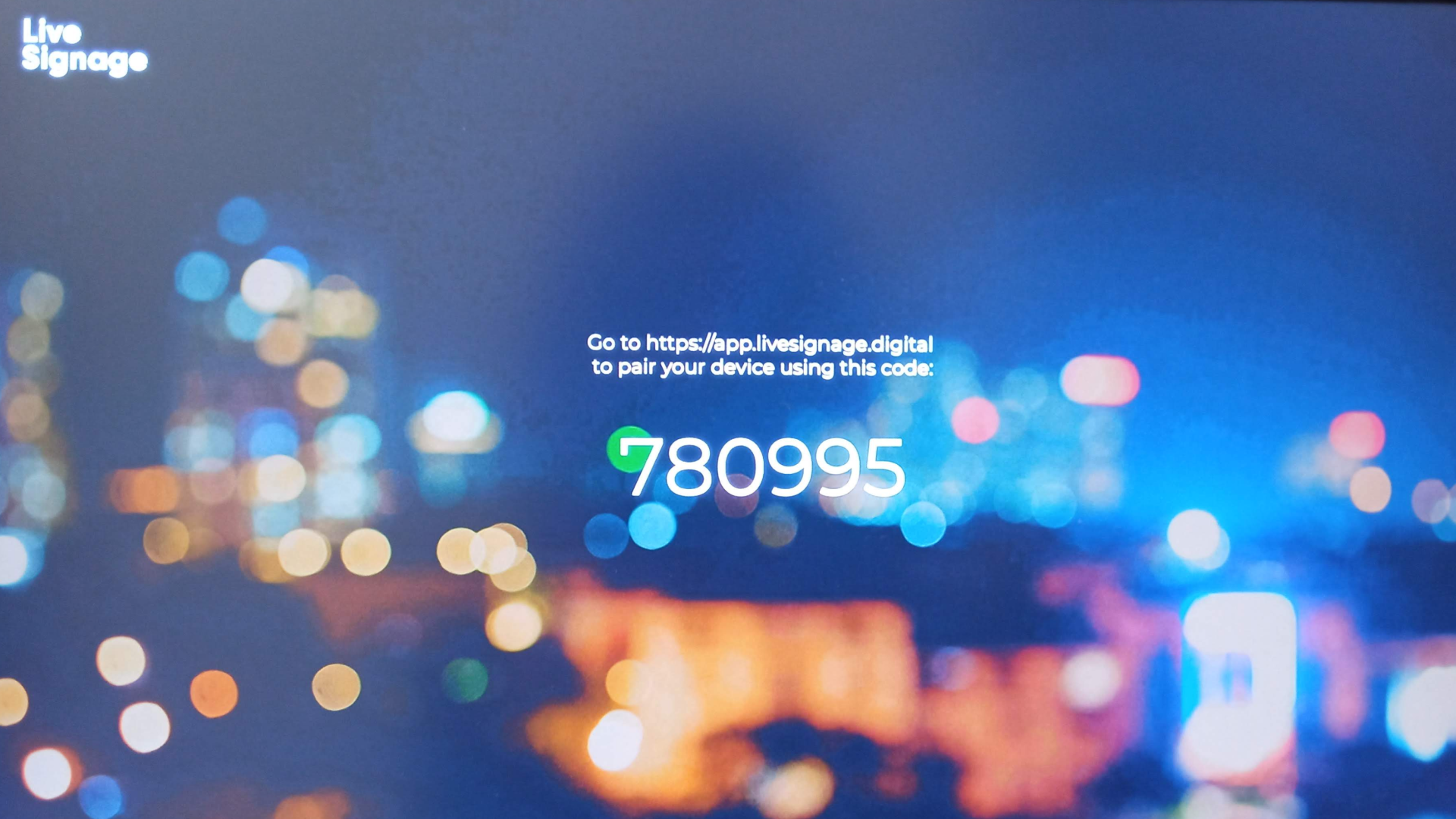

The pairing code will now appear on the display.

Livesignage pairing code displayed on Samsung Kiosk
